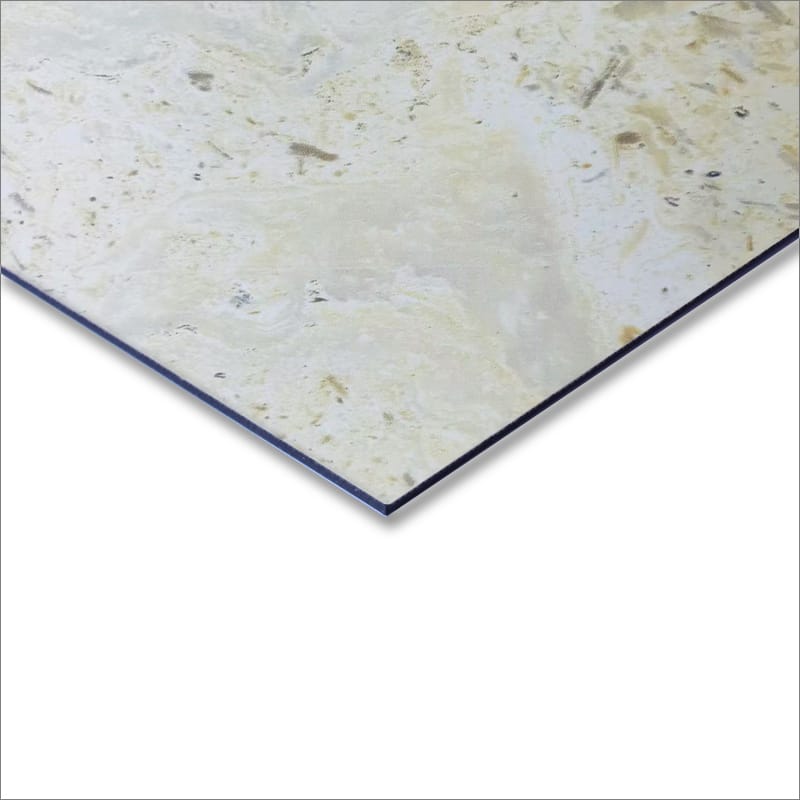

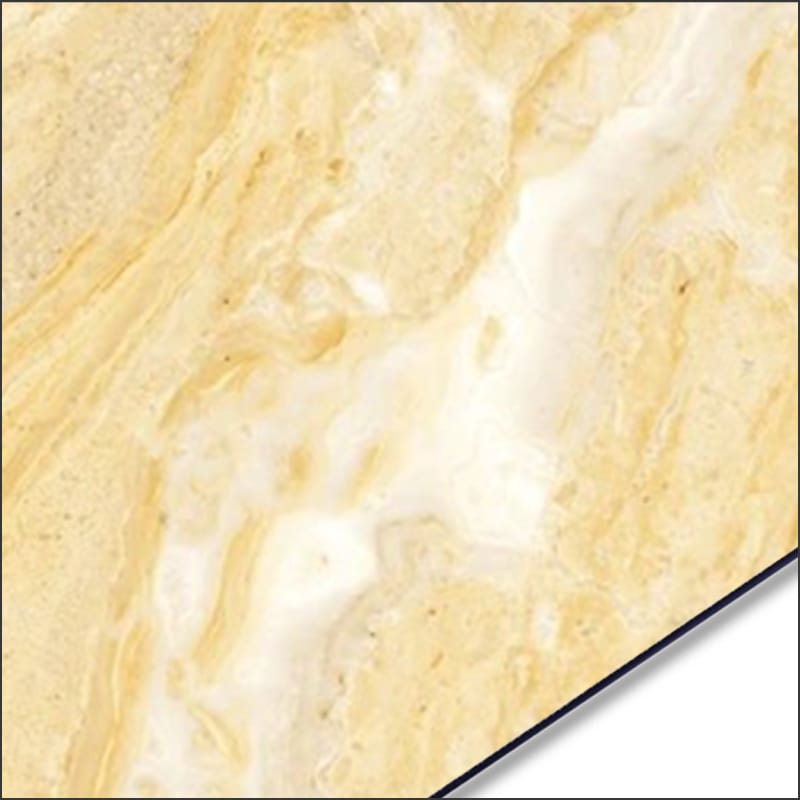

QSJ-0063 Marble Aluminum Composite Panel
Standard Size: 1220*2440mm
Width:1000,1250,1500,1570mm
Length: max 6000mm
Model No.: QSJ-0063
Panel Thickness: 4mm
Alu Thickness: 0.15/0.25mm
Coating: PE/PVDF Coating
Application: interior/exterior
A Marble Aluminum Composite Panel (ACP) is a lightweight building material featuring a sandwich structure: two aluminum sheets encapsulating a central core—typically polyethylene or mineral-filled. Its defining characteristic is the high-resolution, lifelike marble finish applied to the surface, which delivers the luxurious aesthetic of natural stone while leveraging the inherent performance advantages of ACPs. These include reduced weight, cost-effectiveness, superior weather resistance, and simplified installation, making the panel a versatile solution for both interior and exterior cladding applications.
Key Features
- Aesthetics: Boasts an ultra-realistic natural marble appearance, complete with diverse patterns and finish options. It captures the elegance of stone without the associated drawbacks of heavy weight, high cost, and intensive maintenance.
- Lightweight & High Strength: The composite construction results in significantly less weight than solid materials, while the aluminum outer layers ensure exceptional rigidity, long-term durability, and reliable impact resistance.
- Weather & Corrosion Resistance: Enhanced by premium coatings such as PVDF, the panel offers superior protection against UV radiation, sunlight, rain, and atmospheric contaminants. This prevents color fading, corrosion, and surface wear even in harsh environments.
- Ease of Installation & Processing: Its lightweight nature and excellent workability allow for effortless handling, cutting, and shaping—including bending into arcs or right angles. Installation is quick and straightforward using standard woodworking tools, reducing both labor costs and construction timelines.
- Cost-Effectiveness: Typically far more affordable than natural marble or solid aluminum sheets, providing a luxurious aesthetic at a fraction of the cost of traditional premium materials.
- Insulation Properties: The central core delivers effective thermal and acoustic insulation, contributing to improved building energy efficiency and enhanced indoor comfort.
- Fire Resistance Options: While standard cores may have combustible properties, fire-retardant (FR) mineral-filled core variants are available to meet strict building fire safety regulations.
- Eco-Friendliness: Both the aluminum sheets and selected core materials are fully recyclable, supporting sustainable and environmentally responsible construction practices.
Main Applications
Exterior Applications
- Building Facades: Perfect for modern architectural designs, delivering a sophisticated marble aesthetic without the structural burden of natural stone.
- Curtain Walls: Serves as a non-structural outer cladding system, combining aesthetics with functional performance.
- Renovation: Covers and revitalizes aging building exteriors, providing a cost-effective facelift.
- Roofs & Canopies: Offers both protective functionality and enhanced visual appeal for overhead structures.
Interior Applications
- Wall Cladding: Creates decorative interior walls in residential homes, luxury hotels, corporate offices, and public spaces.
- Ceilings: Enables the creation of sleek, contemporary ceiling designs that elevate interior aesthetics.
- Bathrooms & Kitchens: Provides water-resistant surfaces ideal for backsplashes, wall cladding, and cabinet panels.
- Partitions: Constructs lightweight yet visually appealing room dividers that optimize space utilization.
