Fabrication Flexibility
For QSJ-0058, panels can be routed, drilled, cut and folded into wall modules, column covers and fitted architectural components.

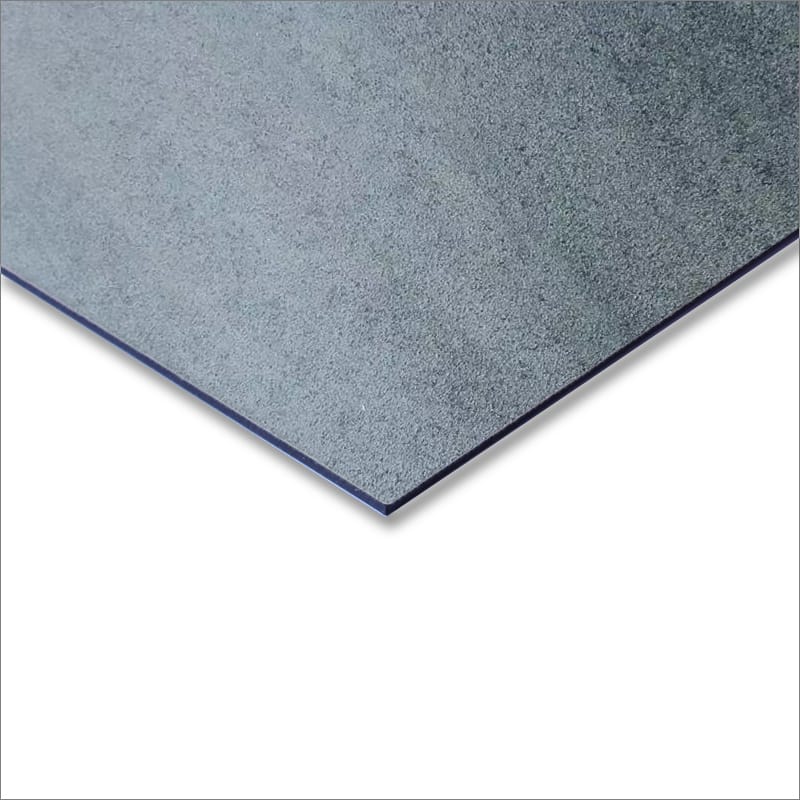

QSJ-0058 Light Grey Stone Finish ACP Panel
QSJ-0058 features a light grey fine-grain stone texture for modern wall panels, lift lobbies, columns and understated commercial interiors. The panel specification and factory processing can be confirmed around the finished component requirements.
- Panel thickness: 4mm
- Standard size: 1220 × 2440mm (4 × 8 ft)
- Aluminium skins: 0.15mm or 0.25mm
- Coating: PE or PVDF, selected for the intended exposure
- Primary use: modern wall panels, lift lobbies, columns and understated commercial interiors
What Is QSJ-0058 Light Grey Stone Finish ACP Panel?
QSJ-0058 is a stone finish aluminium composite panel featuring a light grey fine-grain stone texture. The printed or coated decorative face delivers a quiet concrete-like mineral surface on a lightweight panel that can be sized and fabricated more easily than thick natural stone.
For QSJ-0058, the standard 4mm build is available with coating and aluminium skin options selected for the intended environment. Pattern direction, module layout and an approved finish sample should be confirmed before production, especially where adjacent sheets form one continuous visual area.
Product Data
Technical Specifications
| Item | Available specification |
|---|---|
| Model | QSJ-0058 |
| Panel thickness | 4mm |
| Standard sheet size | 1220 × 2440mm (4 × 8 ft) |
| Available widths | 1000, 1250, 1500 and 1570mm |
| Available length | Up to 6000mm |
| Aluminium skin thickness | 0.15mm or 0.25mm |
| Surface coating | PE or PVDF, selected for the intended exposure |
| Core | Polyethylene |
| Colour / finish | Light grey fine-grain stone texture |
| Recommended use | modern wall panels, lift lobbies, columns and understated commercial interiors |
| Factory processing | Cutting, sizing, routing, grooving and drilling to approved drawings |
Key Advantages
QSJ-0058 Benefits
Consistent Project Modules
Approved samples and planned pattern direction help QSJ-0058 maintain a coordinated appearance across repeated panels.
Interior or Exterior Options
For QSJ-0058, the coating and aluminium skin specification can be selected around the confirmed exposure and fabrication requirements.
Practical Cleaning
For QSJ-0058, a smooth coated surface allows routine care using an appropriate non-abrasive method for the selected finish.
Distinct Mineral Appearance
QSJ-0058 uses a light grey fine-grain stone texture to give fabricated panels a specific stone character and repeatable colour direction.
Lower Panel Weight
For QSJ-0058, the ACP structure reproduces a stone-look surface in a sheet that is lighter and easier to handle than thick stone slabs.
Where It Is Used
Typical Applications
Contemporary Wall Panels
The fine grey texture creates a restrained mineral backdrop for offices and retail spaces.
Lift Lobby Surfaces
Provides a neutral stone look around lift doors, corridor junctions and waiting zones.
Column and Beam Covers
Can be formed into clean architectural casings with a consistent grey finish.
Display and Fixture Backgrounds
Coordinates with timber, black metal and coloured graphics in fitted commercial interiors.
Product Questions
Frequently Asked Questions
What does the QSJ-0058 finish look like?
For QSJ-0058, it features a light grey fine-grain stone texture. The physical sample should be approved because screens and photography cannot reproduce every colour and texture detail.
Where is QSJ-0058 commonly specified?
For QSJ-0058, it is suited to modern wall panels, lift lobbies, columns and understated commercial interiors, with the final panel construction selected for the exposure and component design.
Can this stone-look panel be used outside?
For QSJ-0058, exterior use requires a confirmed PVDF coating, suitable aluminium skins and a project-specific panel build. Polyester coating is generally selected for controlled interior environments.
Which sheet sizes are available for QSJ-0058?
For QSJ-0058, the standard sheet is 1220 × 2440mm (4 × 8 ft); widths and lengths can be discussed within the production and transport limits shown above.
Can Alcadex process QSJ-0058 before shipment?
For QSJ-0058, yes. Cutting, sizing, routing, grooving and drilling can be completed from approved dimensions and fabrication drawings.
Request a Quote for QSJ-0058
Send the required sheet or component dimensions, aluminium skin thickness, finish, quantity and processing drawings. Alcadex will review the specification and prepare a manufacturing quotation for QSJ-0058.
