Increased Stiffness
The deeper 5mm section provides added rigidity for larger interior panels when the aluminium skin and core construction are selected correctly.

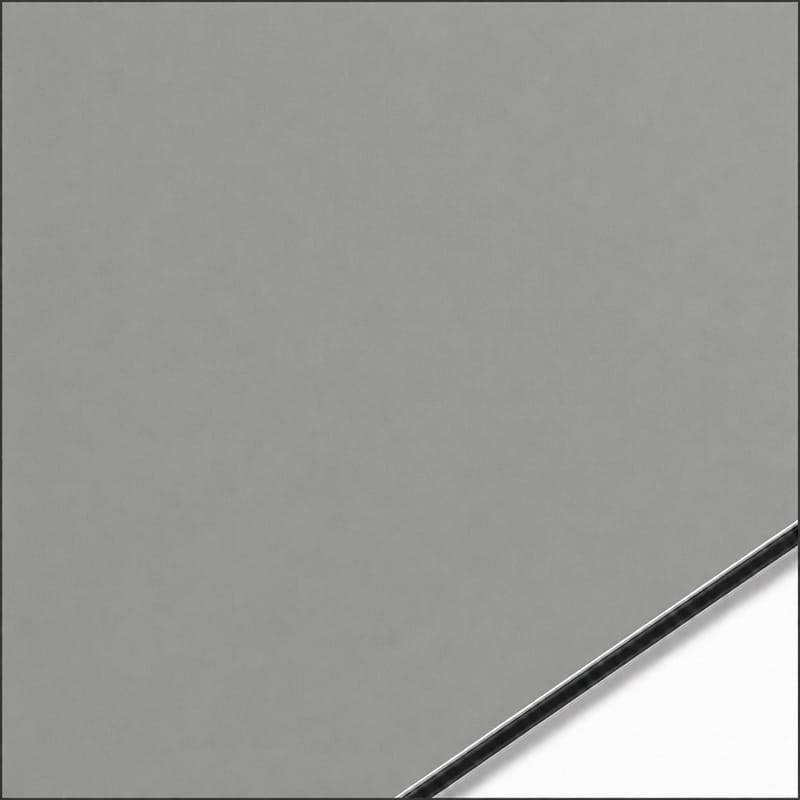

5mm PE Coated Aluminium Composite Panel
The 5mm PE coated aluminium composite panel combines a polyester-coated aluminium face, a polyethylene core and a rear aluminium skin in a deeper, rigid section. It is designed for larger interior panels and fabricated components that benefit from added shape stability.
- Panel thickness: 5mm
- Standard size: 1220 × 2440mm
- Available widths: 1000, 1250, 1500 and 1570mm
- Maximum length: 6000mm
- Surface coating: Polyester (PE)
- Core: Polyethylene
What Is a 5mm PE Coated Aluminium Composite Panel?
A 5mm PE coated aluminium composite panel consists of two aluminium skins bonded to a polyethylene core, with a polyester coating applied to the decorative face. The increased panel depth provides a stiffer composite section for larger interior modules, long returns and fabricated elements that need stable geometry.
The product remains easy to machine using standard ACP fabrication methods. Buyers can specify the aluminium skin thickness, sheet dimensions, coating colour and processing scope according to the size, shape and handling demands of the finished component.
Product Data
Technical Specifications
| Item | Available specification |
|---|---|
| Panel thickness | 5mm |
| Standard sheet size | 1220 × 2440mm (4 × 8 ft) |
| Available widths | 1000mm, 1250mm, 1500mm and 1570mm |
| Length | Up to 6000mm, subject to confirmed specification and transport requirements |
| Front surface coating | Polyester coating (PE) |
| Core | Polyethylene core |
| Aluminium skin thickness | Selected according to order specification and finished component requirements |
| Colours and finishes | Solid, metallic and custom colour matching, subject to sample approval |
| Factory processing | Cutting, sizing, routing, grooving, drilling and fabrication preparation |
| Protective film | Selected according to coating, finish and order requirements |
Key Advantages
5mm PE ACP Panel Benefits
Stable Panel Geometry
Greater section depth helps wide modules and long fabricated parts maintain a flat, consistent shape during handling and final assembly.
Manageable Weight
The composite structure delivers useful stiffness at a lower weight than solid aluminium plate, supporting more efficient workshop handling and transport.
Precision Processing
Panels can be cut, routed, grooved and drilled to repeatable dimensions for folded edges, openings, joints and prepared interior components.
Consistent Appearance
The polyester-coated face provides an even decorative finish across coordinated wall panels, casings, partitions and other large interior surfaces.
Specification Flexibility
Sheet size, aluminium skin thickness, surface colour, protective film and processing details can be configured around the purchasing requirement.
Where It Is Used
Typical Applications
Large Interior Wall Panels
The 5mm section is well suited to broad wall modules in lobbies, corridors, commercial interiors and large feature-surface installations.
Tall Partitions
Its increased depth supports stable partition faces and divider panels where longer spans or larger individual modules are preferred.
Column and Enclosure Panels
The material can be fabricated into column casings, service enclosures and boxed forms that require straight edges and consistent alignment.
Prefabricated Interior Elements
It supports repeat production of large folded components, equipment surrounds and architectural assemblies prepared from approved workshop drawings.
Product Questions
Frequently Asked Questions
Why choose a 5mm PE coated ACP panel?
The 5mm composite section is selected when larger modules or fabricated parts require more rigidity than a thinner panel of comparable construction.
Is the PE coating suitable for interior architectural work?
Yes. Polyester coating provides a smooth, colour-consistent finish for interior wall panels, partitions, casings and other controlled-exposure applications.
What is inside the 5mm panel?
The panel has a polyethylene core bonded between front and rear aluminium skins. The visible face is finished with a polyester coating.
Are custom sheet sizes available?
Yes. Standard and custom widths and lengths can be discussed within production and transport limits, with lengths available up to 6000mm.
Can the panel be pre-cut or grooved?
Yes. Cutting, sizing, routing, grooving and drilling can be completed from approved drawings before the panels or components are packed.
Request a 5mm PE ACP Quotation
Share your module size, aluminium skin specification, finish, quantity and processing drawings. Alcadex will review the requirements and confirm a suitable manufacturing configuration.
