Balanced Panel Rigidity
3mm PE ACP uses a slim 3mm panel build to provide a stable sheet for interior wall linings, ceiling features and fabricated display components.

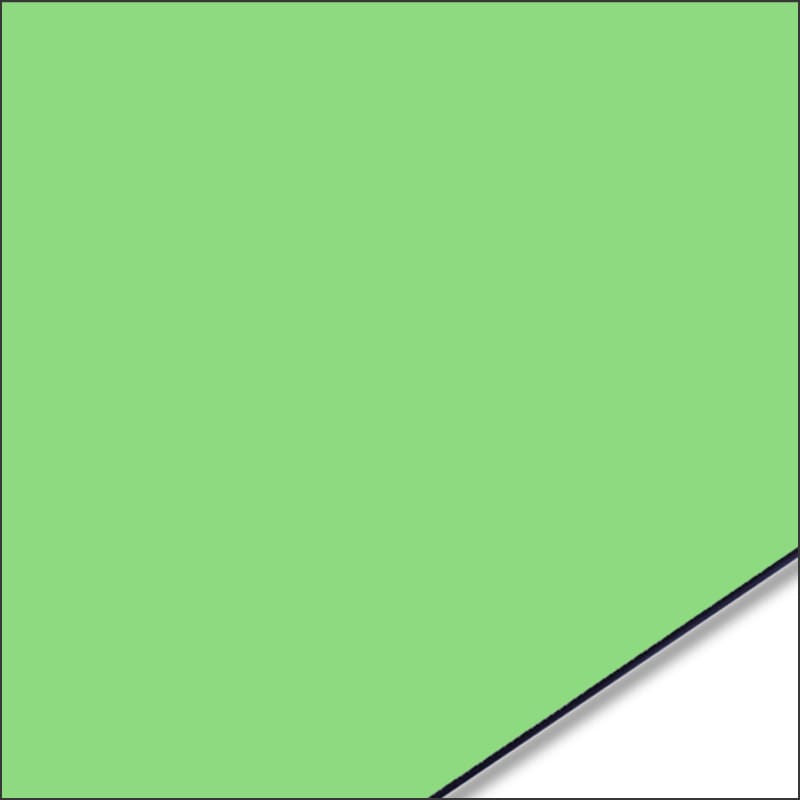

3mm PE Aluminium Composite Panel
3mm PE ACP features a smooth solid or metallic colour finish for interior wall linings, ceiling features and fabricated display components. The panel specification and factory processing can be confirmed around the finished component requirements.
- Panel thickness: 3mm
- Standard size: 1220 × 2440mm (4 × 8 ft)
- Aluminium skins: 0.03–0.20mm, selected to order
- Coating: Polyester coating (PE)
- Primary use: Interior architectural panels and fabricated components
What Is 3mm PE Aluminium Composite Panel?
For 3mm PE ACP, this 3mm PE aluminium composite panel combines two aluminium skins with a polyethylene core and a polyester-coated decorative face. The slim composite section provides a flat, workable sheet for interior projects that need low weight, clean colour presentation and straightforward fabrication.
For 3mm PE ACP, compared with thicker ACP, the 3mm format is easier to handle in smaller modules and detailed interior components. Sheet dimensions, aluminium skin thickness and colour should be confirmed around the intended module size and processing method.
Product Data
Technical Specifications
| Item | Available specification |
|---|---|
| Panel thickness | 3mm |
| Standard sheet size | 1220 × 2440mm (4 × 8 ft) |
| Available widths | 1000, 1250, 1500 and 1570mm |
| Available length | Up to 6000mm |
| Aluminium skin thickness | 0.03–0.20mm, selected to order |
| Surface coating | Polyester coating (PE) |
| Core | Polyethylene |
| Colour / finish | Standard or approved custom colours |
| Recommended use | Interior architectural panels and fabricated components |
| Factory processing | Cutting, sizing, routing, grooving and drilling to approved drawings |
Key Advantages
3mm PE ACP Benefits
Consistent Coated Surface
For 3mm PE ACP, the smooth solid or metallic colour finish supports clean colour presentation across approved production samples and panel modules.
Light Composite Structure
For 3mm PE ACP, aluminium skins and a bonded core reduce weight compared with solid aluminium plate of similar overall thickness.
Flexible Fabrication
3mm PE ACP can be cut, routed, grooved, drilled and formed for project-specific sheet and component dimensions.
Made-to-Order Dimensions
For 3mm PE ACP, widths, lengths and aluminium skin gauges can be coordinated with the confirmed production and transport limits.
Protected Delivery Surface
For 3mm PE ACP, a suitable protective film can be selected to help preserve the coated face during processing and shipment.
Where It Is Used
Typical Applications
Interior Wall Linings
Creates smooth decorative surfaces for retail units, offices, corridors and refurbishment work.
Ceiling Features
Can be cut into lightweight fascias, ceiling inserts and suspended decorative elements.
Display Components
Supports routed and folded panels for exhibition, merchandising and branded interior displays.
Column and Cabinet Covers
Provides a clean skin for compact column casings, cabinet surrounds and equipment enclosures.
Product Questions
Frequently Asked Questions
What is the main advantage of 3mm PE ACP?
For 3mm PE ACP, it combines a slim 3mm panel build with a coated aluminium face and the light, fabricable structure of ACP.
Where is 3mm PE ACP normally used?
For 3mm PE ACP, typical uses include interior wall linings, ceiling features and fabricated display components, subject to the confirmed panel build and component dimensions.
Which panel sizes can be supplied?
For 3mm PE ACP, the standard size is 1220 × 2440mm (4 × 8 ft); the available width and length options are listed in the product data table.
Can the colour or finish be approved before production?
For 3mm PE ACP, yes. Production can proceed against an approved colour sample or finish reference, subject to coating feasibility and order quantity.
Can the panels be supplied ready for fabrication?
For 3mm PE ACP, yes. Alcadex can cut, size, route, groove and drill panels from approved drawings before packing.
Request a Quote for 3mm PE ACP
Send the required sheet or component dimensions, aluminium skin thickness, finish, quantity and processing drawings. Alcadex will review the specification and prepare a manufacturing quotation for 3mm PE ACP.
