Coating Options by Exposure
For QSJ-0004, polyester and PVDF configurations allow the cool silver-grey vertical wood grain to be matched to confirmed interior or exterior use.

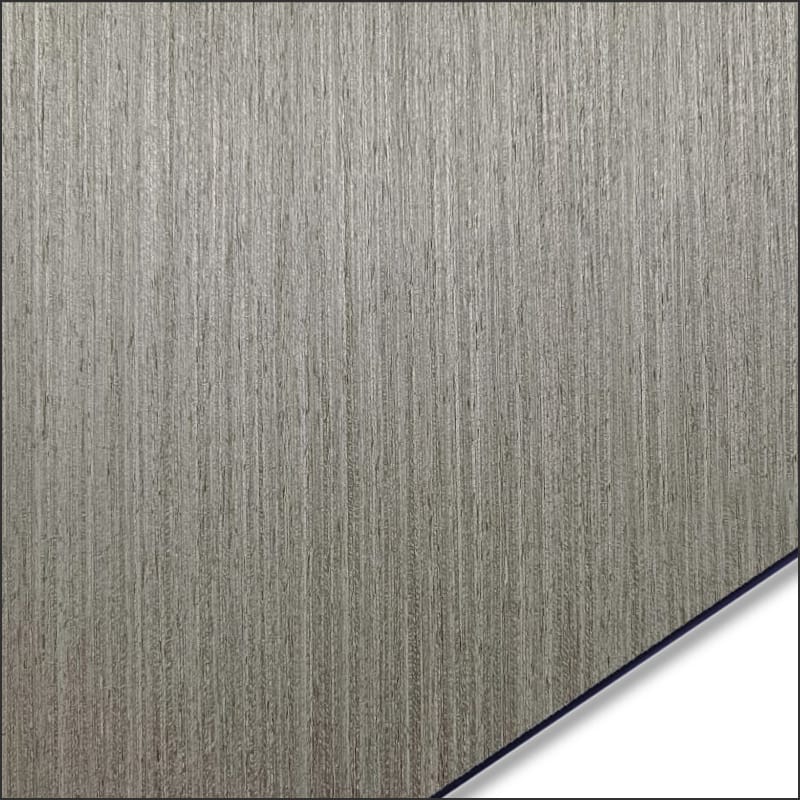

QSJ-0004 Silver Grey Wood Finish ACP Panel
QSJ-0004 features a cool silver-grey vertical wood grain for minimal interiors, ceilings, columns and contemporary shopfitting. The panel specification and factory processing can be confirmed around the finished component requirements.
- Panel thickness: 4mm
- Standard size: 1220 × 2440mm (4 × 8 ft)
- Aluminium skins: 0.15mm or 0.25mm
- Coating: PE for interior use; PVDF option for confirmed exterior use
- Primary use: minimal interiors, ceilings, columns and contemporary shopfitting
What Is QSJ-0004 Silver Grey Wood Finish ACP Panel?
QSJ-0004 is a wood finish aluminium composite panel with a cool silver-grey vertical wood grain. It reproduces a modern desaturated timber finish on a flat aluminium surface while retaining the low weight and fabrication flexibility expected from ACP.
For QSJ-0004, the standard 4mm panel can be specified with a polyester coating for interior use or an appropriate PVDF configuration for exterior exposure. Aluminium skin thickness, grain direction and approved sample should be confirmed before production so repeated modules share a consistent appearance.
Product Data
Technical Specifications
| Item | Available specification |
|---|---|
| Model | QSJ-0004 |
| Panel thickness | 4mm |
| Standard sheet size | 1220 × 2440mm (4 × 8 ft) |
| Available widths | Standard and special widths subject to confirmation |
| Available length | Up to 6000mm |
| Aluminium skin thickness | 0.15mm or 0.25mm |
| Surface coating | PE for interior use; PVDF option for confirmed exterior use |
| Core | Polyethylene |
| Colour / finish | Cool silver-grey vertical wood grain |
| Recommended use | minimal interiors, ceilings, columns and contemporary shopfitting |
| Factory processing | Cutting, sizing, routing, grooving and drilling to approved drawings |
Key Advantages
QSJ-0004 Benefits
Straightforward Surface Care
For QSJ-0004, the coated face can be maintained with suitable non-abrasive cleaning methods, supporting a neat wood-look surface.
Defined Wood-Grain Character
QSJ-0004 presents a cool silver-grey vertical wood grain, giving the selected surface a recognisable identity rather than a generic timber print.
Lightweight Decorative Skin
For QSJ-0004, its aluminium-composite construction brings a wood-look finish to panels and components without the mass of solid timber boards.
Controlled Module Appearance
Production from an approved sample and one grain direction helps adjacent QSJ-0004 panels maintain a coordinated visual flow.
Workshop-Friendly Processing
For QSJ-0004, the 4mm sheet can be cut, routed, grooved and folded for project-specific wall panels, covers and fitted elements.
Where It Is Used
Typical Applications
Modern Interior Walls
The cool grey grain suits minimal offices, technology spaces and contemporary retail interiors.
Ceiling Details
Provides a lightweight wood-look finish for ceiling rafts, fascias and recessed features.
Column Covers
Can be routed and folded into clean silver-grey casings around structural columns.
Shopfitting Components
Coordinates with black, white and metallic fixtures in display walls and fitted counters.
Product Questions
Frequently Asked Questions
What does the QSJ-0004 finish look like?
For QSJ-0004, it features a cool silver-grey vertical wood grain. The physical sample should be approved because screens and photography cannot reproduce every colour and texture detail.
Where is QSJ-0004 commonly specified?
For QSJ-0004, it is suited to minimal interiors, ceilings, columns and contemporary shopfitting, with the final panel construction selected for the exposure and component design.
Can this wood-grain panel be used outside?
For QSJ-0004, exterior use requires a confirmed PVDF coating, suitable aluminium skins and a project-specific panel build. Polyester coating is generally selected for controlled interior environments.
Which sheet sizes are available for QSJ-0004?
For QSJ-0004, the standard sheet is 1220 × 2440mm (4 × 8 ft); widths and lengths can be discussed within the production and transport limits shown above.
Can Alcadex process QSJ-0004 before shipment?
For QSJ-0004, yes. Cutting, sizing, routing, grooving and drilling can be completed from approved dimensions and fabrication drawings.
Request a Quote for QSJ-0004
Send the required sheet or component dimensions, aluminium skin thickness, finish, quantity and processing drawings. Alcadex will review the specification and prepare a manufacturing quotation for QSJ-0004.
