Straightforward Surface Care
For QSJ-0005, the coated face can be maintained with suitable non-abrasive cleaning methods, supporting a neat wood-look surface.

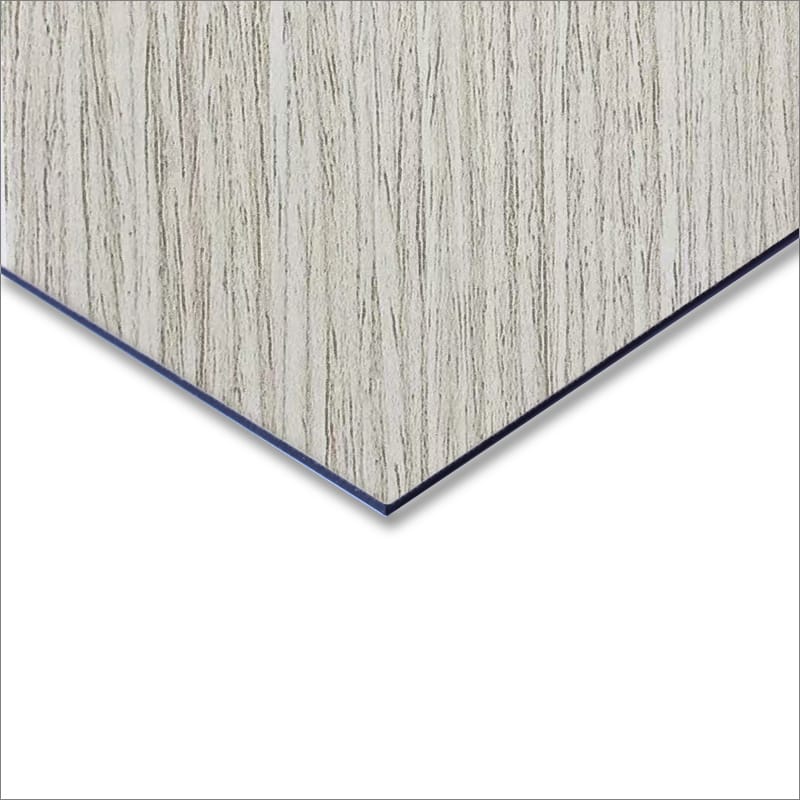

QSJ-0005 Light Maple Wood Finish ACP Panel
QSJ-0005 features a pale maple wood grain with subtle knots for airy interiors, cabinetry surrounds, ceilings and welcoming commercial spaces. The panel specification and factory processing can be confirmed around the finished component requirements.
- Panel thickness: 4mm
- Standard size: 1220 × 2440mm (4 × 8 ft)
- Aluminium skins: 0.15mm or 0.25mm
- Coating: PE for interior use; PVDF option for confirmed exterior use
- Primary use: airy interiors, cabinetry surrounds, ceilings and welcoming commercial spaces
What Is QSJ-0005 Light Maple Wood Finish ACP Panel?
QSJ-0005 is a wood finish aluminium composite panel with a pale maple wood grain with subtle knots. It reproduces a bright and natural light-wood appearance on a flat aluminium surface while retaining the low weight and fabrication flexibility expected from ACP.
For QSJ-0005, the standard 4mm panel can be specified with a polyester coating for interior use or an appropriate PVDF configuration for exterior exposure. Aluminium skin thickness, grain direction and approved sample should be confirmed before production so repeated modules share a consistent appearance.
Product Data
Technical Specifications
| Item | Available specification |
|---|---|
| Model | QSJ-0005 |
| Panel thickness | 4mm |
| Standard sheet size | 1220 × 2440mm (4 × 8 ft) |
| Available widths | Standard and special widths subject to confirmation |
| Available length | Up to 6000mm |
| Aluminium skin thickness | 0.15mm or 0.25mm |
| Surface coating | PE for interior use; PVDF option for confirmed exterior use |
| Core | Polyethylene |
| Colour / finish | Pale maple wood grain with subtle knots |
| Recommended use | airy interiors, cabinetry surrounds, ceilings and welcoming commercial spaces |
| Factory processing | Cutting, sizing, routing, grooving and drilling to approved drawings |
Key Advantages
QSJ-0005 Benefits
Defined Wood-Grain Character
QSJ-0005 presents a pale maple wood grain with subtle knots, giving the selected surface a recognisable identity rather than a generic timber print.
Lightweight Decorative Skin
For QSJ-0005, its aluminium-composite construction brings a wood-look finish to panels and components without the mass of solid timber boards.
Controlled Module Appearance
Production from an approved sample and one grain direction helps adjacent QSJ-0005 panels maintain a coordinated visual flow.
Workshop-Friendly Processing
For QSJ-0005, the 4mm sheet can be cut, routed, grooved and folded for project-specific wall panels, covers and fitted elements.
Coating Options by Exposure
For QSJ-0005, polyester and PVDF configurations allow the pale maple wood grain with subtle knots to be matched to confirmed interior or exterior use.
Where It Is Used
Typical Applications
Bright Commercial Interiors
The pale maple tone helps reception areas, clinics and showrooms feel open and welcoming.
Cabinet Surrounds
Can be cut into repeatable light wood-look skins for storage walls and display cabinetry.
Ceiling and Fascia Panels
Adds a soft timber effect to overhead features without heavy solid-wood construction.
Hospitality Feature Surfaces
Works with neutral fabrics and stone colours in cafés, lounges and guest-facing areas.
Product Questions
Frequently Asked Questions
What does the QSJ-0005 finish look like?
For QSJ-0005, it features a pale maple wood grain with subtle knots. The physical sample should be approved because screens and photography cannot reproduce every colour and texture detail.
Where is QSJ-0005 commonly specified?
For QSJ-0005, it is suited to airy interiors, cabinetry surrounds, ceilings and welcoming commercial spaces, with the final panel construction selected for the exposure and component design.
Can this wood-grain panel be used outside?
For QSJ-0005, exterior use requires a confirmed PVDF coating, suitable aluminium skins and a project-specific panel build. Polyester coating is generally selected for controlled interior environments.
Which sheet sizes are available for QSJ-0005?
For QSJ-0005, the standard sheet is 1220 × 2440mm (4 × 8 ft); widths and lengths can be discussed within the production and transport limits shown above.
Can Alcadex process QSJ-0005 before shipment?
For QSJ-0005, yes. Cutting, sizing, routing, grooving and drilling can be completed from approved dimensions and fabrication drawings.
Request a Quote for QSJ-0005
Send the required sheet or component dimensions, aluminium skin thickness, finish, quantity and processing drawings. Alcadex will review the specification and prepare a manufacturing quotation for QSJ-0005.
