Consistent Coated Surface
For Exterior PVDF ACP, the weather-resistant PVDF colour coating supports clean colour presentation across approved production samples and panel modules.

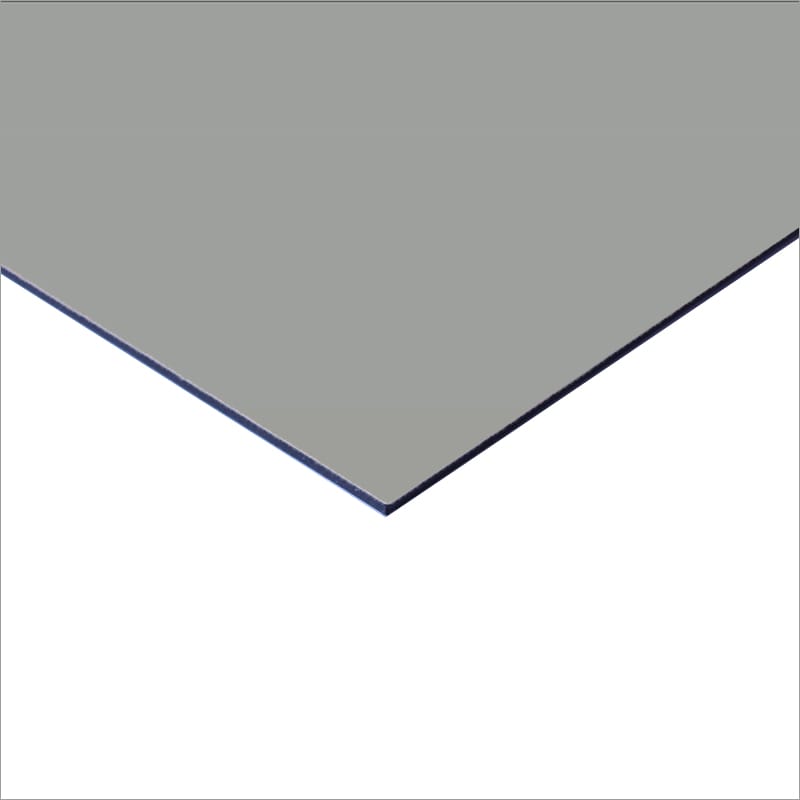

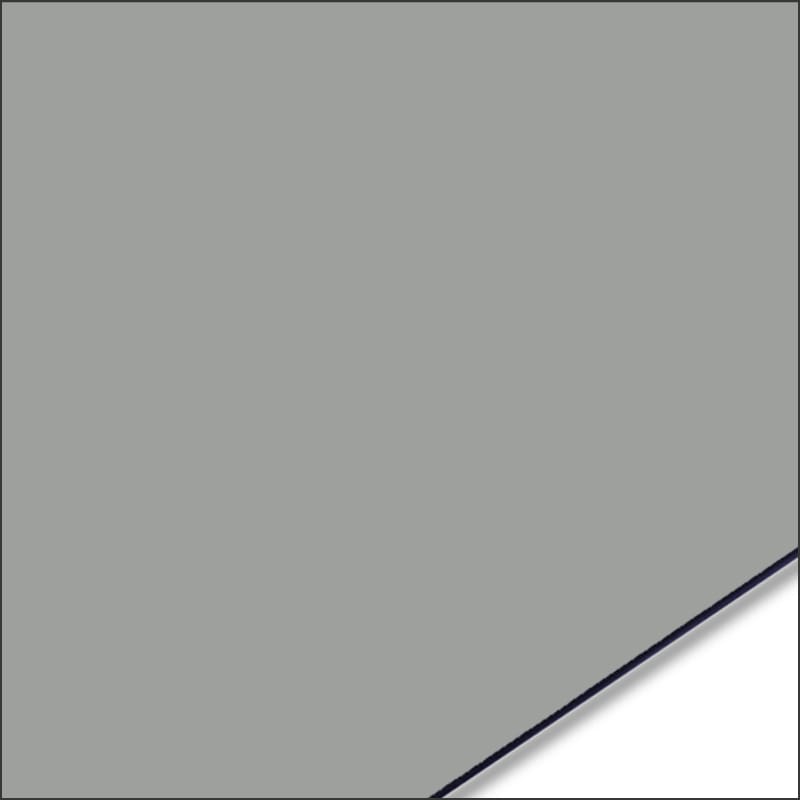

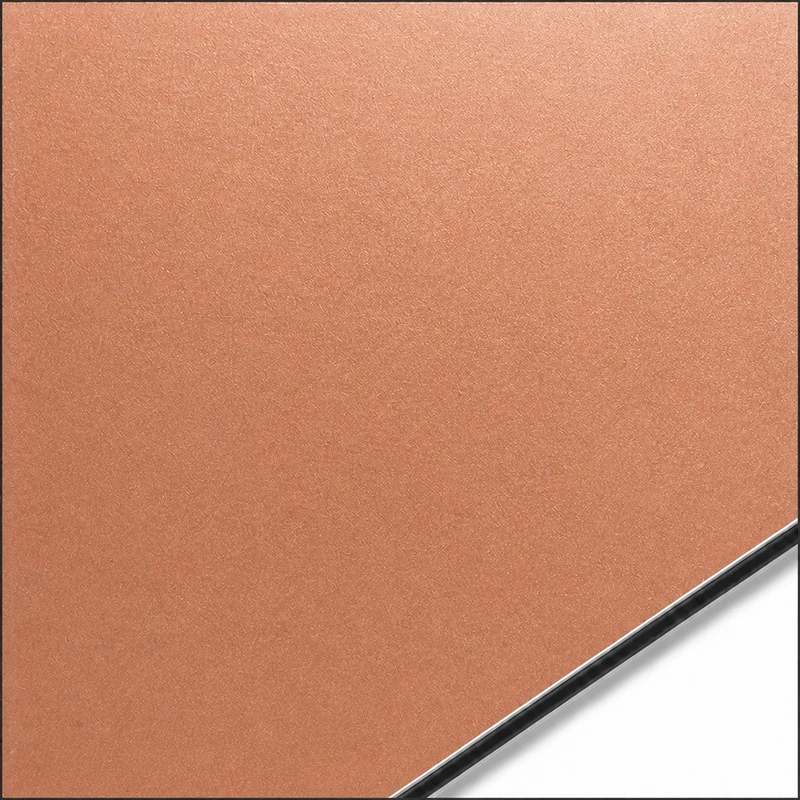

Exterior PVDF Aluminium Composite Panel
Exterior PVDF ACP features a weather-resistant PVDF colour coating for commercial façades, curtain-wall infill and exterior cladding modules. The panel specification and factory processing can be confirmed around the finished component requirements.
- Panel thickness: 4mm, 5mm or 6mm
- Standard size: 1220 × 2440mm (4 × 8 ft)
- Aluminium skins: 0.18–0.50mm
- Coating: PVDF coating
- Primary use: Exterior façades, curtain-wall infill and cladding
What Is Exterior PVDF Aluminium Composite Panel?
For Exterior PVDF ACP, exterior PVDF aluminium composite panel is manufactured with aluminium face sheets, a composite core and a PVDF-coated exposed surface. The coating is selected for outdoor colour retention, resistance to weathering and a consistent architectural appearance across cladding modules.
For Exterior PVDF ACP, panel thickness, aluminium skin gauge and joint module should be coordinated before fabrication. Alcadex supplies full sheets or factory-processed parts for customers producing exterior cladding cassettes and façade components.
Product Data
Technical Specifications
| Item | Available specification |
|---|---|
| Panel thickness | 4mm, 5mm or 6mm |
| Standard sheet size | 1220 × 2440mm (4 × 8 ft) |
| Available widths | 1000, 1250, 1500 and 1570mm |
| Available length | Up to 6000mm |
| Aluminium skin thickness | 0.18–0.50mm |
| Surface coating | PVDF coating |
| Core | Polyethylene core; fire-rated builds are specified separately |
| Colour / finish | Standard, metallic or approved project colour |
| Recommended use | Exterior façades, curtain-wall infill and cladding |
| Factory processing | Cutting, sizing, routing, grooving and drilling to approved drawings |
Key Advantages
Exterior PVDF ACP Benefits
Light Composite Structure
For Exterior PVDF ACP, aluminium skins and a bonded core reduce weight compared with solid aluminium plate of similar overall thickness.
Flexible Fabrication
Exterior PVDF ACP can be cut, routed, grooved, drilled and formed for project-specific sheet and component dimensions.
Made-to-Order Dimensions
For Exterior PVDF ACP, widths, lengths and aluminium skin gauges can be coordinated with the confirmed production and transport limits.
Protected Delivery Surface
For Exterior PVDF ACP, a suitable protective film can be selected to help preserve the coated face during processing and shipment.
Balanced Panel Rigidity
Exterior PVDF ACP uses an exterior-grade 4–6mm panel range to provide a stable sheet for commercial façades, curtain-wall infill and exterior cladding modules.
Where It Is Used
Typical Applications
Commercial Façades
Provides a uniform coloured skin for offices, retail buildings and mixed-use developments.
Curtain-Wall Infill
Can be fabricated into defined modules that coordinate with approved framing and joint layouts.
Entrance and Canopy Cladding
Supports folded returns and clean edges around entrances, soffits and architectural projections.
Exterior Refurbishment
Offers a lightweight new finish for selected recladding and façade-renewal programmes.
Product Questions
Frequently Asked Questions
What is the main advantage of Exterior PVDF ACP?
For Exterior PVDF ACP, it combines an exterior-grade 4–6mm panel range with a coated aluminium face and the light, fabricable structure of ACP.
Where is Exterior PVDF ACP normally used?
For Exterior PVDF ACP, typical uses include commercial façades, curtain-wall infill and exterior cladding modules, subject to the confirmed panel build and component dimensions.
Which panel sizes can be supplied?
For Exterior PVDF ACP, the standard size is 1220 × 2440mm (4 × 8 ft); the available width and length options are listed in the product data table.
Can the colour or finish be approved before production?
For Exterior PVDF ACP, yes. Production can proceed against an approved colour sample or finish reference, subject to coating feasibility and order quantity.
Can the panels be supplied ready for fabrication?
For Exterior PVDF ACP, yes. Alcadex can cut, size, route, groove and drill panels from approved drawings before packing.
Request a Quote for Exterior PVDF ACP
Send the required sheet or component dimensions, aluminium skin thickness, finish, quantity and processing drawings. Alcadex will review the specification and prepare a manufacturing quotation for Exterior PVDF ACP.
